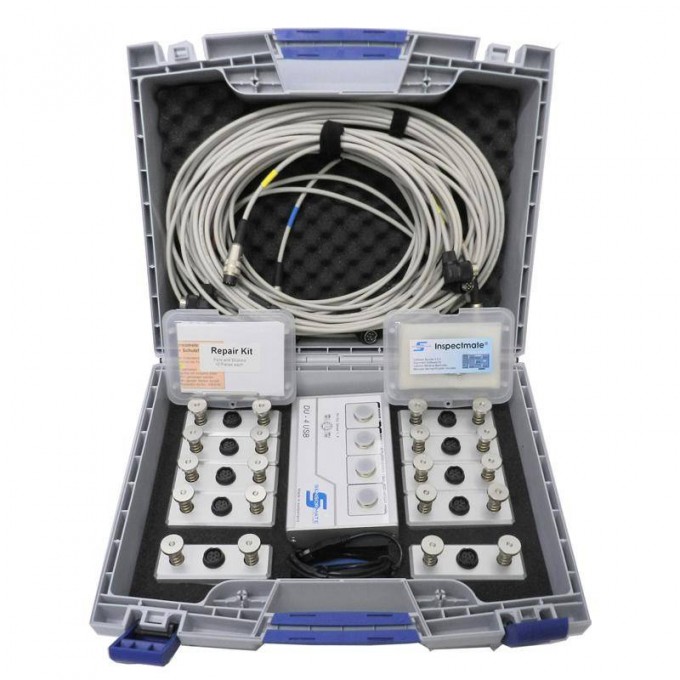

GEFRAN 10266 QE1008-DU-4USB четырехканальная тензометрическая система с цифровым монитором-USB 276962

GEFRAN 10266 QE1008-DU-4USB четырехканальная тензометрическая система с цифровым монитором-USB от GEFRAN — современный вариант Датчики силы и деформации, подходящий для широкого спектра задач. Компания Gefrussia.ru поставляет сертифицированные товары напрямую от производителей

Преимущества работы с нами:

• Прозрачные условия сотрудничества
• Консультации и техническая поддержка на всех этапах
• Сертифицированная продукция без подделок
• Быстрое оформление заказа и доставка в любую точку РФ
• Короткие сроки поставки благодаря прямым контрактам

The DU-4USB Monitor is an industrial signal amplifier and monitor for strain gauges and strain sensors. It is connected to the PC via the USB port. The measured values are displayed directly on the PC screen using by the &bdquo,Inspectmate software. Force mesurement on tie bars displays in kN or tons and diameter input. Strain measurement displays in &mu,&epsilon, (micro strain). Direct switch units and change parameters. The handling is very user-friendly, the robust aluminium housing ideal for harsh environments. The 4-channel DU-4USB digital monitor box can only be operated in conjunction with a PC. The magnetic strain gauge sensor QE1008-W measure the surface-strain directly at the mounting location in the same quality as bonded strain gages. The magnetic press-on technology, developed by Sensormate AG, presses the strain gauges under the stainless protective film so strongly against the surface to be measured that frictional contact occurs. The mounting of the sensor is non-destructive, very fast and simple.

• Complete system for the simultaneous strain-measurement on up to four tie bars
• Direct display of strain values in &mu,&epsilon,, kN or t (via our Inspectmate software)
• Quick and non-destructive assembly with magnetic press-on technology
• High accuracy and linearity in tension and pressure (like bonded strain gauges)
• Ideal for use on presses, injection-moulding and die-casting machines
• Application on tie bars with a diameter of 45mm or higher and flat surfaces
• Dynamic applications
• 4- channel digital monitor-box DU-4USB
• USB connection for tie bar adjustment software and power supply
• Very compact and easy to use system
