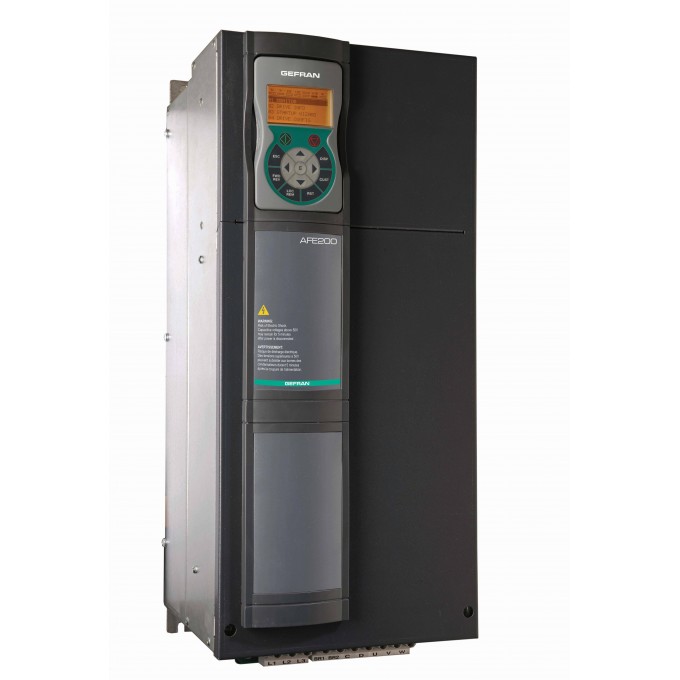

Блок питания GEFRAN 10224 AFE200 рекуперативный с активным передним концом 10848

Блок питания GEFRAN 10224 AFE200 рекуперативный с активным передним концом от GEFRAN — оборудование класса Приводы, сочетающее прочность и точность. Компания Gefrussia.ru предлагает продукцию, подходящую для различных отраслей и сфер применения

Что получает клиент:

• Минимальные сроки доставки за счет прямых поставок
• Быстрая обработка заказа и отгрузка по всей России
• Поддержка инженеров и менеджеров на каждом этапе сделки
• Гарантированно подлинное оборудование напрямую от бренда
• Конкурентные цены и прозрачные условия работы

The AFE200 offers a number of advantages: Clean Power thanks to the unit power factor and reduced harmonic distortion (<5%) Enhanced system dynamics during drive and regeneration Considerable energy savings during regeneration transients Improved stability of the DC Bus circuit under load changes Significant cost-effectiveness with the single power supply system Elimination of uneconomical conventional braking systems and braking resistors The AFE200 range has power ratings of 22kW to 1.65MW for three-phase power supplies of 400VAC to 690VAC. Ease of use and intuitive programming make it possible for users of any level to exploit the high-level performance of Active Front End technology for a broad range of applications where there is a need for real energy saving. Options LCL filter (mandatory) Pre-load kit, includes resistor and 2 pre-load contactors (mandatory) External EMI mains filter
Active Front End Regenerative Power Supply Unit, from 22kW to 1.65MW 400V series: * Power supply: 380VAC -15% &hellip,500VAC +5%, 50/60Hz * Power ratings: from 22kW to 1.2MW 690V series: * Power supply: 500VAC -10% &hellip,690VAC +10%, 50/60Hz * Power ratings: from 160kW to 1.65MW * Cosphi &ge, 0,99 * Overload 150% for 60 sec every 5 minutes (Heavy duty) or 110% for 60 sec every 5 minutes (Light duty) * IP20-rated protection (IP00 size 7 and parallel) * Certifications: CE. UL, cUL Features: - Integration of up to 2 options on board the drive - GF-eXpress multi-language programming SW (5 languages) - Integrated KB_ADV programming keypad Inputs / Outputs:

• 2 bipolar analog inputs (Voltage/Current)
• 2 bipolar analog outputs (1: Voltage/Current, 1: Voltage)
• 6 digital inputs (PNP/NPN)
• 2 digital outputs (PNP/NPN)
• 2 relay outputs, single contact
• RS485 serial line (Modbus RTU)

Fieldbus management:

• DeviceNet, Modbus, GDnet, CANopen, Ethercat, PROFIBUS, PROFINET

Conformity:

• Climatic conditions: EN 60721-3-3
• Electrical safety: EN 50178, EN 61800-5-1, UL508C, UL840 pollution level 2
• Vibrations: EN 60068-2-6, test Fc.
• EMC EN61800-3

Environmental conditions:

• Ambient temperature: 0 ...40°C, +40°C&hellip,+50°C with derating
• Altitude: Max 2000 m.

Markings:

• CE: Complies with the EEC directive concerning low voltage equipment.
• UL-cUL: Complies with directives for the American and Canadian market
